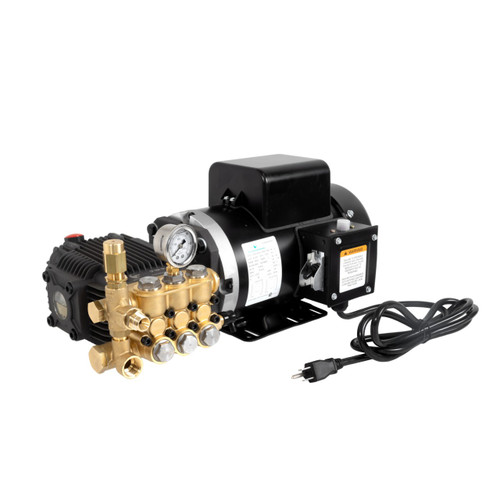

Canpump Misting & Fogging Kit: 2 hp Half-Speed Motor, 1 US gpm Triplex Pump




This premium misting, fogging and cooling kit pairs a 2 hp Canpump solid shaft motor to a Canpump CF 1520 EH hollow shaft triplex pump, delivering up to 1,500 psi at 1 US gpm. A fully detachable and replaceable Canpump unloader is included with the respective pumps.

This setup with a durable triplex pump is perfect for larger misting/fogging systems (greenhouses, climate control systems, industrial humidification systems, outdoor cooling, poultry, horse and cattle cooling, odor neutralization systems, dust control systems, special fog effects, etc).

This setup is capable of running:

Nozzle orifice size Number of nozzles
0.15 mm 55
0.20 mm 40
0.30 mm 26

This kit does not include other accessories like connectors, nozzles, tubes and filters; these can be purchased separately from our store to suit your custom requirements.

Canpump motor specs

Power source: Single-Phase
 2 hp (1.5 kW)
Speed: 1,727 rpm
Voltage: 115 V
Current: 16 amp
Frequency: 60 Hz
Protection: IP44
Shaft: ⅝″ shaft with NEMA 56C flange

Canpump CF 1520 EH
  • Pressure: 1500 psi (105 bar)
  • Flow rate: 1 US gpm (4 L/min) when paired with a half-speed 2 hp motor in this configuration
  • Power: 2 hp (1.5 kW)
  • RPM: Full speed
  • Pump mechanism: Triplex plunger
  • Unloader valve: Detachable P.A VB 130 unloader valve, pressure-adjustable
  • Inlet: ¾ standard garden hose
  • Outlet: Quick-connect
  • Includes: Detergent tube with strainer and operating manual with spare parts list
  • Oil grade: SAE 15W-40 oil

Extra Information

2.0 hp
Half speed
