Description

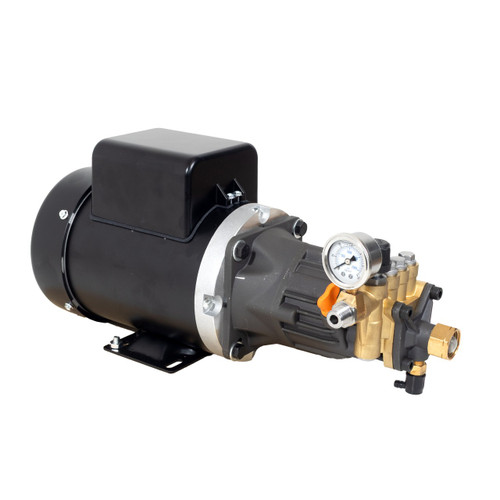

This premium misting, fogging and cooling kit pairs a 2 hp Canpump solid shaft half speed motor to a Canpump CF 2530 E hollow shaft triplex pump, delivering up to 3.0 US gpm. A fully detachable and replaceable PA unloader is included with the respective pumps.
This setup with a durable triplex pump is perfect for larger misting/fogging systems (greenhouses, climate control systems, industrial humidification systems, outdoor cooling, poultry, horse and cattle cooling, odor neutralization systems, dust control systems, special fog effects, etc).
When pressure is set to 800- 1,000 psi, this setup can run:
| Nozzle orifice size | Number of nozzles |
| 0.15 mm | 230 |
| 0.20 mm | 165 |
| 0.30 mm | 100 |
| 0.40 mm | 70 |
| 0.50 mm | 60 |
| 0.60 mm | 55 |
| 0.80 mm | 45 |
This kit does not include other accessories like connectors, nozzles, tubes, and filters; these can be purchased separately from our store to suit your custom requirements.
Canpump motor specs
Power source: Single-Phase
Power: 2 hp (1.5 kW)
Speed: 1,727 rpm
Voltage: 120 V
Current: 16 amp
Frequency: 60 Hz
Protection: IP44
Shaft: ⅝″ shaft with NEMA 56C flange
Canpump CF 2530 E
- Pressure: 1000 psi (69 bar) when paired with a 2 hp motor in this configuration
- Flow rate: 3.0 US gpm (11.3 L/min)
-
Power: 2 hp (1.5 kW)
-
RPM: Half speed
- Pump mechanism: Triplex plunger
- Unloader valve: Detachable P.A. VB 130 unloader valve, pressure-adjustable
- Inlet: ¾″ standard garden hose
- Outlet: Quick-connect
- Includes: Detergent tube with strainer and operating manual with spare parts list
- Oil grade: SAE 15W-40 oil
